Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220V/380V | Warranty: | 2 Years |
|---|---|---|---|
| Dimension(l*w*h): | 2500*3000*1450mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Free Spare Parts |
| Raw Material: | PP Chips | Product Name: | Non-woven Fabric Production Line |
| Application: | Nonwoven Fabric Disposable Machine | Color: | As Customer Require |
| Product Width: | 1600 To 3200mm (final Nonwoven Product) | ||
| High Light: | nonwoven fabric machine,nonwoven fabric making machine |
||
A.L-Nonwoven PP Spunbond Nonwoven Fabric Production line for package, shopping bags
Quick Details :
1> Model : AL-1600S , AL-2400S , AL-3200S, AL-4200S
2> Width : 1600 to 4200mm
3> Fabric :GSM :10~250 g
4> Speed : 0~350m/min
5> CE ; ISO9001
Parts Of PP Non Woven Fabric Equipment :
Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box---->Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter
Spun-Laid Process And Technical Flow Chart:
Additive(Recycling offcut fabric)---->Raw material---->Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->Web forming---->Calendering---->Winding----> Cutting---->Final product
General Information For PP Non Woven Fabric Equipment
| Model No. | AL-1600S | AL-2400S | AL-3200S |
| Working Width | 1600mm | 2400mm | 3200mm |
| Fabric GSM | 15~250 | 15~250 | 15~250 |
| Power Input | 200KVA | 250KVA | 300KVA |
| Consumption | 130KW | 180KW | 200KW |
| Annual Output | 1500T | 2000T | 3000T |
| Embossing Pattern | Diamond, Oval | ||
| Speed | 10~300m/min | ||
| Fineness | 1.5~2.5d | ||

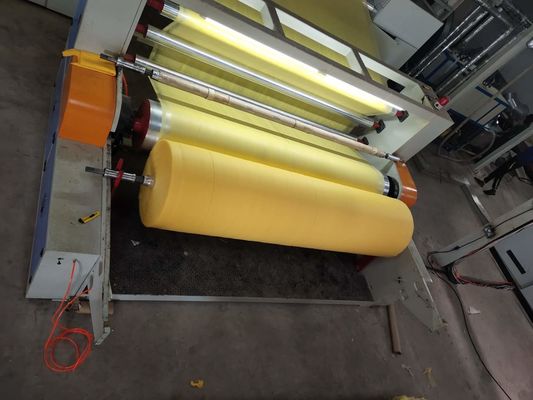

Final non woven fabric
Fabric Usage
Single S fabric usually for package, shopping bags, agriculture cover,etc
