Product Details:
Payment & Shipping Terms:
|
| Product Name: | Non-woven Fabric Production Line | Certification: | CE/ISO9001 |
|---|---|---|---|
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Capacity: | 100-450KG/H | Product Width: | 1850MM |
| Voltage: | 220V/380V | Weight: | 3000KG |
| Automatic Grade: | Automatic | ||
| High Light: | nonwoven fabric machine,nonwoven fabric making machine |
||

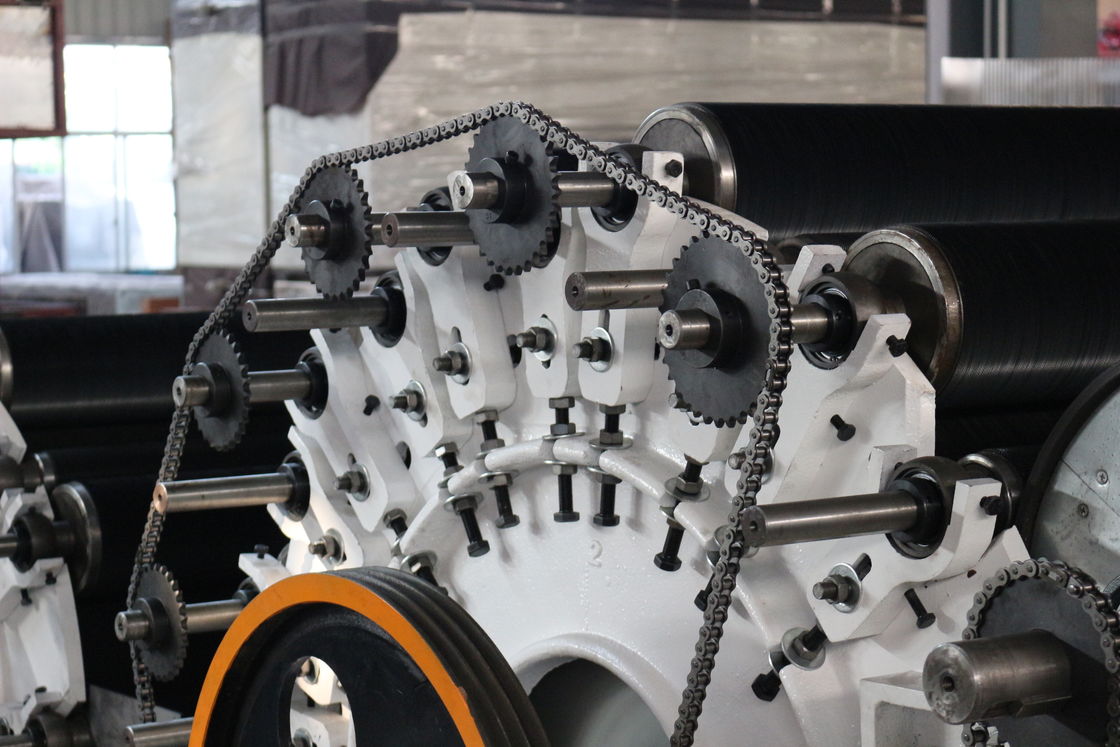

1850*1230 Single cylinder double doffer carding machine for all the nonwoven fabric making machine used
Cylinder double doffer carding machine for all the nonwoven fabric making machine used
This carding machine is fifth carding machine,prototype as HDB carding machine,Omni seal and pressurization system can remove questions of stuck at feeding part, hanging fiber；
Working principle:Even layer through multiple carding,wipe off impurity in the carding process,to be even layer
Main components:frame,stand platform,step,roller,grid,housing,suction device
roller size:
| Name | diameter | Quanlity |
| Input roller | 76mm | 4 |
| Open roller | 295mm | 1 |
| bosom cylinder | 850mm | 1 |
| Main cylinder | 1230mm | 1 |
| up&down doffer | 492mm | 2 |
| Work roller | 165mm | 9 |
| Strip roller | 98mm | 13 |
| Rimq roller | 105mm | 1 |
| Mix roller | 295mm | 4 |
| Strip net roller | 165mm | 2 |
Installed with 8 sets frequency changer all is individual control, respectively to control the feeding, cylinder, doffer, inner clutter, outer clutter ,output lattice ;
Machine Show
FAQ
Q1:what is the raw material ?
A1:Pp fiber ,PET fiber ,wool fiber west fiber ect ;
Q2:how about the capacity ?
A2:can be max450kg/h--500kg/h ;
Q3:How long is your warranty time?
A3:1 Year.
Q4:How long can delivery machine ?
