ALSL--C2D2 1580*1230 Double Cylinder Double Doff Carding Machine

Certification
Good quality PP Non Woven Fabric Making Machine for sales
Good quality PP Non Woven Fabric Making Machine for sales
Customer Reviews
I like the service, very quick response, professional work. Even in the midnight , My machine got Problems, they also solve them in time . Brazil

—— Joinase

They are very Professional work . I purchased one 1.6mSS Production Line. The Machine is excellent beyond my expect. Non we are ordering 4.2mSS Line.

—— Frando

I'm Online Chat Now

ALSL--C2D2 1580*1230 Double Cylinder Double Doff Carding Machine

China ALSL--C2D2  1580*1230 Double Cylinder Double Doff Carding Machine supplier

Large Image :  ALSL--C2D2 1580*1230 Double Cylinder Double Doff Carding Machine

Product Details:

Place of Origin: DONGYANG /ZHEJIANG
Brand Name: A.L(aolong)
Certification: ISO/CEO
Model Number: 1580*1230

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 17500USD/SET
Packaging Details: Nude packing , wooden case is optional. case packing:Carding machine, lapper and electric boxes wooden case packaged. Other machines nude packaging. Any damage in transport of machines is not duty of the seller.
Delivery Time: 35days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5set/month
Detailed Product Description
Production Name: Double Cylinder Double Doff Carding Machine Doff Size: 490mm
Capacity: Max450kg/h Cylinder Size: 1020mm
GSM: 5000GSM Warranty: 1 Year
Width: 1580mm Automatic Grade: Automatic



     ALSL--C2D2 1580*1230 Double Cylinder

          Double Doff Carding Machine



Parameters and Configuration

Funcition

it is designed with doubel cylinder double doff ,fiber is sent form front cylinder to middle doff and main cylinder through rollers ,each cylinder have 4 to 5 sets of carding rollers ,after many times of carding then feed to the curtain on the cross lapper .







Specifications

width 1580 2000 2200 2500
capacity  150kg/h 250kg/h  300kg/h 450kg/h
doff size  490mm 490mm 490mm 490mm
cylinder size  850mm 1020mm 1230mm 1500mm
power 17kw 20kw 22kw 28kw

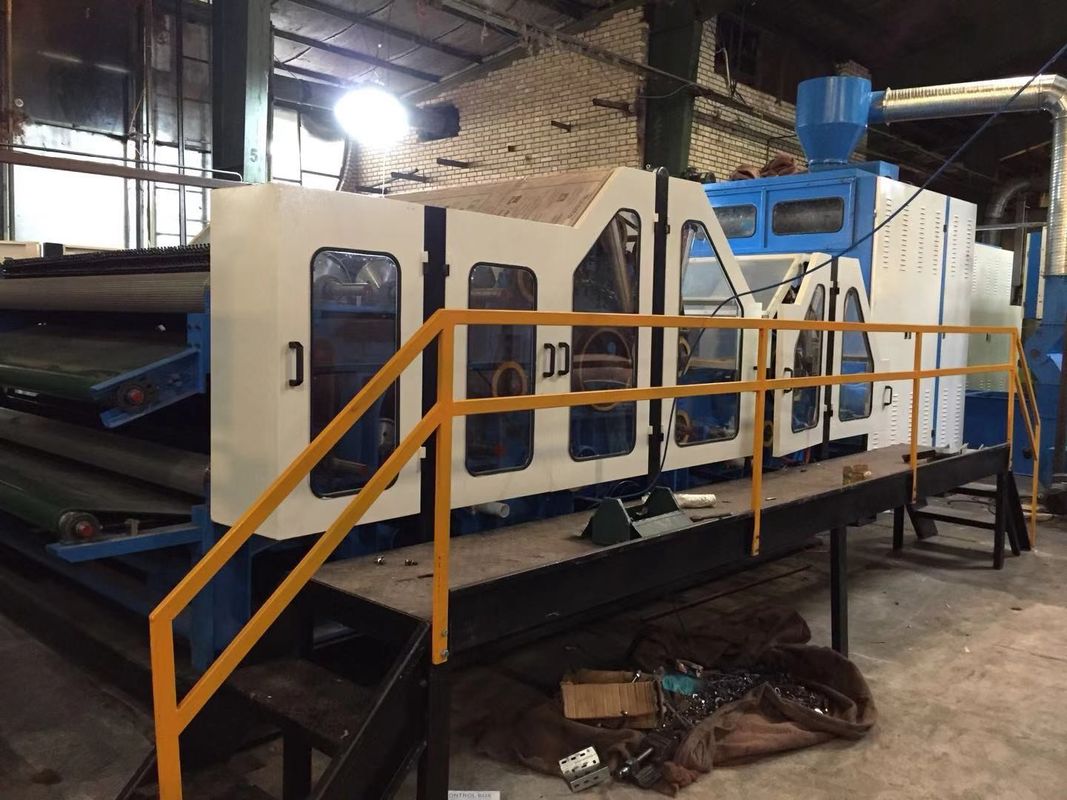

machine's working show

ALSL--C2D2  1580*1230 Double Cylinder Double Doff Carding Machine



ALSL--C2D2  1580*1230 Double Cylinder Double Doff Carding Machine







AFQ

1:are you manufactory ?

A:yes ,manufactory .

2:where is cocation ?

A:we are in zhejiang province .near shanghai and yiwu

3:contact number ?

email:angel@alnonwoven.com

mobil:+8613706796923

whatsapp:+8613706796923

wechat:+8613706796923
