Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Automatic Grade: | Automatic,Semi-Automatic |
---|---|---|---|
After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service | Condition: | New |
Weight: | Customization,according To The Width | Dimension(l*w*h): | Customization |
Power(w): | Customization | Voltage: | Customization |
Name: | Carding Machine,Nonwoven Thermal Bonded Padding Mattress Production Line,Thermal Bonding Needle Punched Machine,Non-Glue Cotton Production Line Hard Thermal Bonding Machine | Capacity: | Customizable |
Color: | Customer Request | Product Name: | Nonwoven Carding Machine,Nowoven Drying Oven,polyester Wadding,Thermal Bonding Oven Nonwoven Machine Heating Setting Machine,silicon Thermal Bonding Polyester Bonded PET Wadding Machinery |
Application: | Manufacture,used To Thermal Bond The Web,Nonwoven Fabric Disposable Machine,Industrial Nonwoven Fabric Manufacturing,quilt | Raw Material: | Polyester,Polypropylene,Low Melting Point Fiber,psf,pp |
Type: | Nonwoven Fabric Line,Customizable,wadding Machine | Machine Type: | Customizable,Single Cylinder Double Doffer,Oven Production Line |
Width: | 1550-3000mm | Working Width: | 2300mm |
Keywords: | Polyester Wadding Machine,nonwoven Oven | ||
High Light: | Flexible Printing Machine,flexographic printing machine |
1) Net product width: 2300mm, 2500mm, 3200mm
2) Product specification: 80-1000g/m2.
3) Production capacities: 80-200kg/h.
4) Heating source: heat-conducting oil, direct ignition.
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

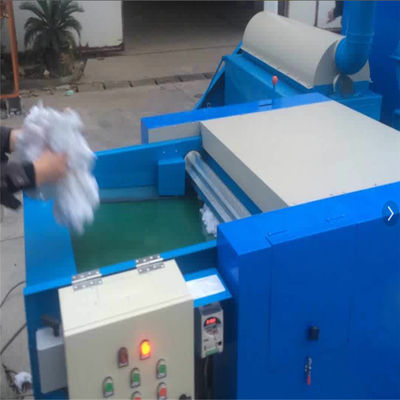

Working Width: 1850mm
Mechanical type: double cylinder double doffer four random
Proper fiber specification:1.5D-7D
Main cylinder diameter 1230mm with 5 sets working zones.
Four rollers feeding with frequency control, installed with anti-metal alarm and auto-reverse function.

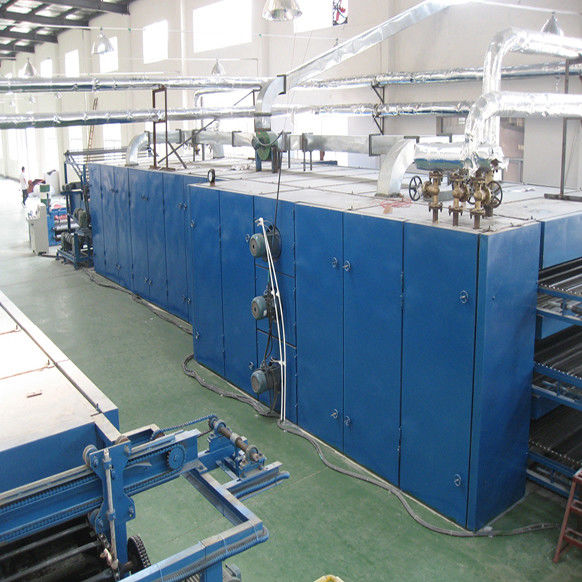

OVEN length: 6000-8000mm
Working width: 2800mm-2800mm
Working temperture: ≤220℃
Working speed: 1-10m/min
Feeding type: gas, heating,oil,electricity
Effective output width≤3000mm
Input Lattice length: 2000mm(anti-skidding PVC belt)
Output Lattice length:2900mm
Bottom lattice: Bamboo lattice, lift range: 500mm
All the horizontal moving rollers adopt seamless steel pipes
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
