Product Details:
Payment & Shipping Terms:
|
| Material: | PP Chips | Voltage: | Customization |
|---|---|---|---|
| Condition: | New | Warranty: | 2 Years |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Automatic Grade: | Automatic |
| Product Name: | Non-woven Fabric Production Line | Name: | Pp Spunbond Nonwoven Fabric Production Line |
| Color: | Customizable | Application: | Medical Products |
| Product Width: | 1600/2400/3200mm | Machine Type: | S/SS/SSS/SSSS/SMS/SMMS/SMSS/SSMMS |
| Final Products: | Non Woven Fabric Roll | ||
| High Light: | non woven making machine,PP Non Woven Fabric Making Machine |
||

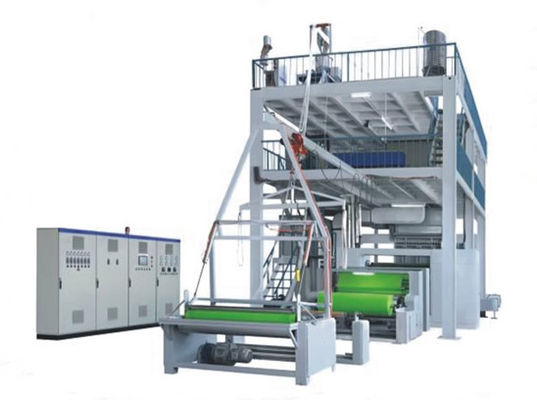

High quality pp spunbond non woven fabric production line for S/SS/SMS type
1. The techincal parameter of non woven fabric production line
|
Model No.
|
AL-1600SS
|
AL-2400SS
|
AL-3200SS
|
AL-4200SS
|
|
Width
|
1600mm
|
2400mm
|
3200mm
|
4200mm
|
|
Fiber Denier
|
≤2.3D
|
≤2.3D
|
≤2.3D
|
≤2.3D
|
|
Fabric GSM
|
15~250g/m2
|
15~250g/m2
|
15~250g/m2
|
15~250g/m2
|
|
Pattern
|
cross , diamend, line
|
cross , diamend, line
|
cross , diamend, line
|
cross , diamend, line
|
|
Screw Dia.
|
130, 30:1
|
150, 30:1
|
170, 30:1
|
170, 30:1
|
|
Machine Speed
|
10~250m/min
|
10~250m/min
|
10~250m/min
|
10~250m/min
|
|
Capacity
|
3000T/Year
|
4800T/Year
|
6000T/Year
|
8000T/Year
|
|
Power input
|
300KVA
|
350KVA
|
600KVA
|
800KVA
|
|
Power Consumption
|
200KW
|
250KW
|
300KW
|
450KW
|
|
Machine Size
|
35M*15M*1 3M
|
30M*16M*1 3M
|
30M*18M*1 3M
|
30M*20M*1 3M
|
|
Container Requirement
|
5X40'HQ
|
6X40'HQ
|
10X40'HQ
|
15X40'HQ
|
|
Machine can be customized and tested before they will be deliveried.
|
||||
2. The company show
3. FAQ
A. How I get right Machine for me , If I have no ideal about the machine ?
B: It doesn't matter. Tell me what kind of fabric that you want the machine , how much you want to produce and factory szie etc. We will design for you.
A.I already have one factory but there is a little of different in the size ,For example the height can't meet the 13m , only 12m?
B:Don't worry. Your machine will be customized.
A How to make sure your machine's quality?how about the service?
B: Each machine gets ISO9001:2008,CE, SGS. And warranty is one year. you can enjoy the service within production lifetime.
