One Cylinder Nonwoven Fabric Machine Double Doffer Carding Machine Low Noise

China One Cylinder Nonwoven Fabric Machine Double Doffer Carding Machine Low Noise supplier
One Cylinder Nonwoven Fabric Machine Double Doffer Carding Machine Low Noise supplier One Cylinder Nonwoven Fabric Machine Double Doffer Carding Machine Low Noise supplier One Cylinder Nonwoven Fabric Machine Double Doffer Carding Machine Low Noise supplier

Large Image :  One Cylinder Nonwoven Fabric Machine Double Doffer Carding Machine Low Noise

Product Details:

Place of Origin: DONGYANG/ZHEJIANG
Brand Name: AOLONG(A.L)
Certification: ISO/CE
Model Number: ALSL--C1D2 1550*1230

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: usd 1500/set
Packaging Details: Nude packing , wooden case is optional. case packing:Carding machine, lapper and electric boxes wooden case packaged. Other machines nude packaging. Any damage in transport of machines is not duty of the seller.
Delivery Time: 45DAYS
Payment Terms: L/C, T/T
Supply Ability: 5SET BY MONTH
Contact Now
Detailed Product Description
Voltage: 220V/380V Warranty: 1 Year
Automatic Grade: Automatic Raw Material: PET Fiber ,pp Fiber
Product Name: Single Cylinder Double Doffer Carding Machine Product Width: Diameter Width 1550mm
Machine Type: Single Cylinder Double Doffer Color: As Customer Require
Capacity: 450kg/h Speed: 45m/min

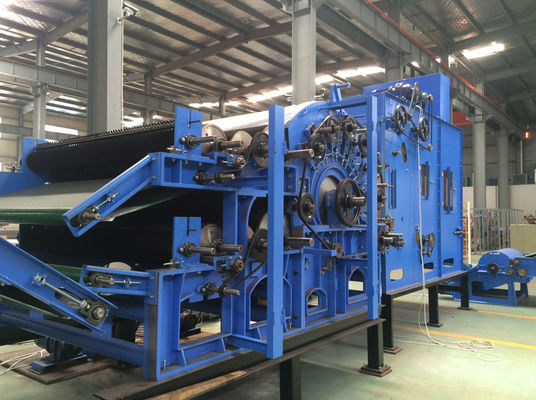

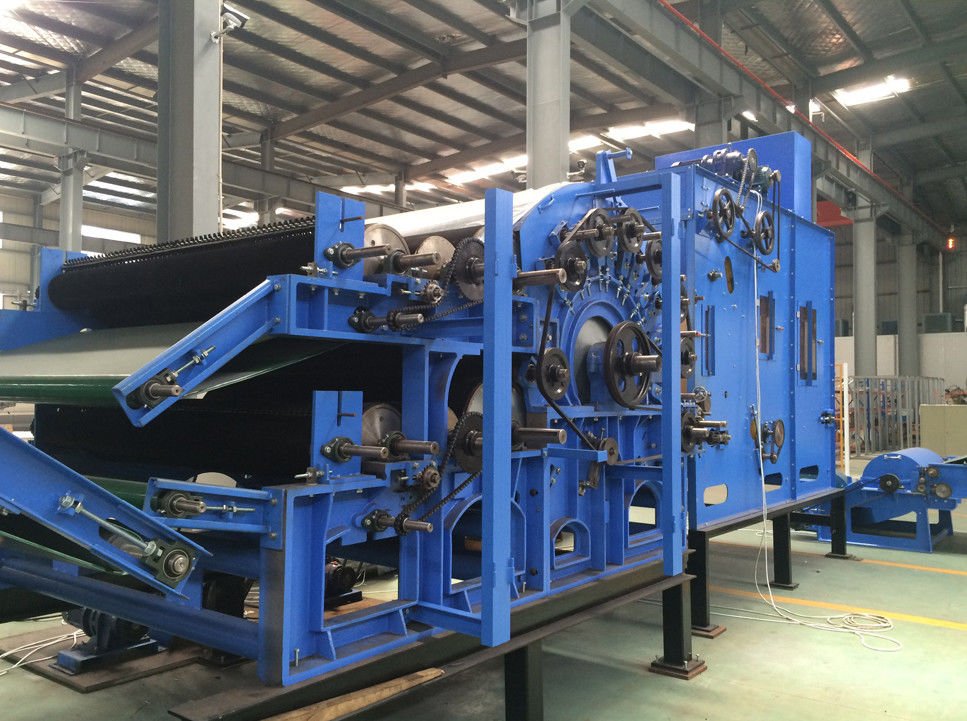

ALSL--C1D2 1550*1230 Single cylinder double doffer carding machine

ALSL--C1D2 1550*1230 Single cylinder double doffer carding machine



This carding machine is fifth carding machine,prototype as HDB carding machine,Omni seal and pressurization system can remove questions of stuck at feeding part, hanging fiber;Working principle:Even layer through multiple carding,wipe off impurity in the carding process,to be even layer;Main components:frame,stand platform,step,roller,grid,housing,suction device;Installed with 8 sets frequency changer all is individual control, respectively to control the feeding, cylinder, doffer, inner clutter, outer clutter ,output lattice ;Four rollers feeding with frequency control, installed with anti-metal alarm and auto-reverse function;



roller size



Name diameter Quanlity
Input roller 76mm 4
Open roller 295mm 1
bosom cylinder 850mm 1
Main cylinder 1230mm 1
up&down doffer 492mm 2
Work roller 165mm 5
Strip roller 98mm 7
Rimq roller 105mm 1
Mix roller 295mm 4
Strip net roller 165mm 2



The whole line with PLC controlling, the controlling box is separated with the electric appliances. The separated electric box is installed with converter, PLC controller, and electric controlling components. It is usually put separated far from the production line. Operation box installed with touch panel.



One Cylinder Nonwoven Fabric Machine Double Doffer Carding Machine Low Noise



One Cylinder Nonwoven Fabric Machine Double Doffer Carding Machine Low Noise





FAQ

Q1:what is the raw material ?

A1:Pp fiber ,PET fiber ,wool fiber west fiber ect ;

Q2:how about the speed?

A2:max:45m/min

Q3:How long is your warranty time?

A3:1 Year.

Q4:How long can delivery machine ?

A4: 35days
