Product Details:
Payment & Shipping Terms:
|
| Product Name: | Single Cylinder Double Doffer Carding Machine | Capacity: | 500kg/h |
|---|---|---|---|
| Product Width: | 1850mm | Speed: | 45m/min |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Voltage: | 220V/380V | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Color: | As Customer Require | ||
| High Light: | nonwoven fabric machine,nonwoven fabric making machine |
||
ALSL--C1D2 1850*1230 still wadding single cylinder double doffer carding machine
main detail for machine
platform,step,roller,grid,housing,suction device;Installed with 8 sets frequency changer all is individual control, respectively to control the feeding, cylinder, doffer, inner clutter, outer clutter ,output lattice ;Four rollers feeding with frequency control, installed with anti-metal alarm and auto-reverse function;
The whole line with PLC controlling, the controlling box is separated with the electric appliances. The separated electric box is installed with converter, PLC controller, and electric controlling components. It is usually put separated far from the production line. Operation box installed with touch panel.
roller size
| Name | diameter | Quanlity |
| Input roller | 76mm | 4 |
| Open roller | 295mm | 1 |
| Main cylinder | 1230mm | 1 |
| up&down doffer | 492mm | 2 |
| Work roller | 165mm | 5 |
| Strip roller | 98mm | 7 |
| Rimq roller | 105mm | 1 |
| Mix roller | 295mm | 4 |
| Strip net roller | 165mm | 2 |

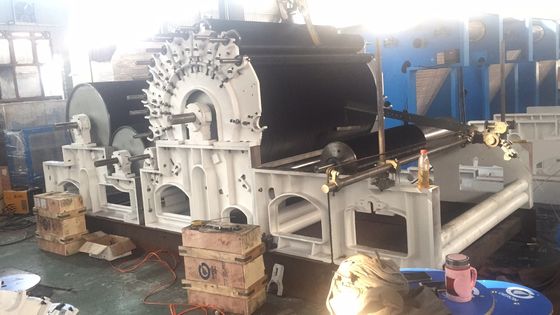

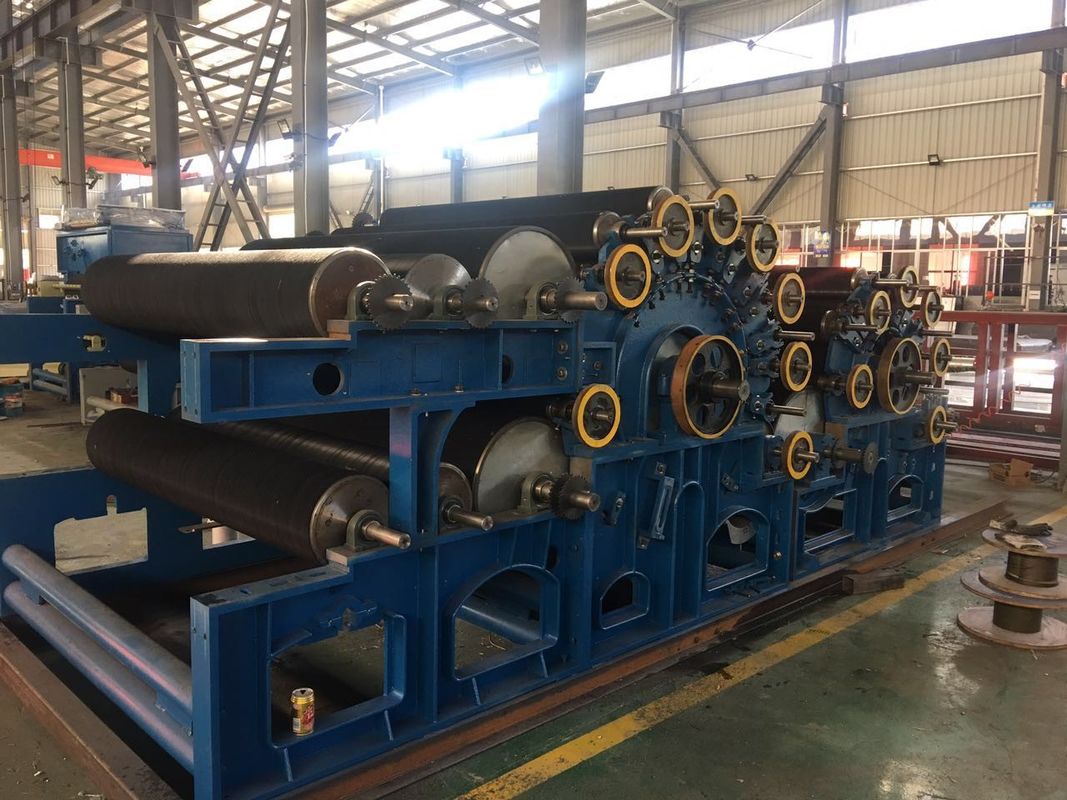

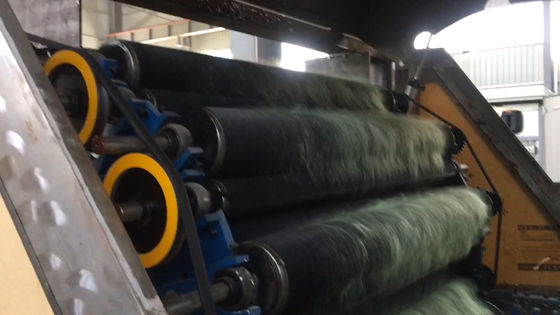

machine show
FAQ
Q1:what is the raw material ?
A1:Pp fiber ,PET fiber ,wool fiber west fiber ect ;
Q2:how about the speed?
A2:max:45m/min
Q3:How long is your warranty time?
A3:1 Year.
Q4:How long can delivery machine ?
