Fabric GSM 9~250 S PP Non Woven Fabric Production Line Width 3200mm For Shopping Bag

Certification
Good quality PP Non Woven Fabric Making Machine for sales
Good quality PP Non Woven Fabric Making Machine for sales
Customer Reviews
I like the service, very quick response, professional work. Even in the midnight , My machine got Problems, they also solve them in time . Brazil

—— Joinase

They are very Professional work . I purchased one 1.6mSS Production Line. The Machine is excellent beyond my expect. Non we are ordering 4.2mSS Line.

—— Frando

I'm Online Chat Now

Fabric GSM 9~250 S PP Non Woven Fabric Production Line Width 3200mm For Shopping Bag

China Fabric GSM 9~250 S PP Non Woven Fabric Production Line Width 3200mm For Shopping Bag supplier
Fabric GSM 9~250 S PP Non Woven Fabric Production Line Width 3200mm For Shopping Bag supplier Fabric GSM 9~250 S PP Non Woven Fabric Production Line Width 3200mm For Shopping Bag supplier Fabric GSM 9~250 S PP Non Woven Fabric Production Line Width 3200mm For Shopping Bag supplier Fabric GSM 9~250 S PP Non Woven Fabric Production Line Width 3200mm For Shopping Bag supplier

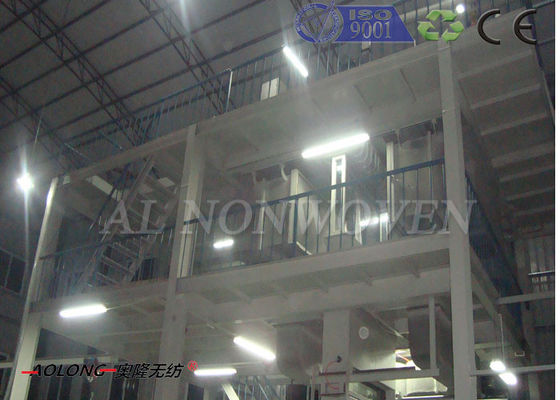

Large Image :  Fabric GSM 9~250 S PP Non Woven Fabric Production Line Width 3200mm For Shopping Bag

Product Details:

Place of Origin: China
Brand Name: AL brand
Certification: CE; ISO9001;
Model Number: AL-1600S,AL-2400S,AL-3200S,AL-4200S

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD300,000~1,000,000 FOBNINGBO
Packaging Details: Wooden case; carton
Delivery Time: 40~45 days
Payment Terms: T/T;L/C
Supply Ability: 50sets/year
Guarantee Period: 1 year
Contact Now
Detailed Product Description
High Light:

PP Non Woven Fabric Making Machine

,

non woven fabric manufacturing machine

Fabric GSM 9~250 S PP Non Woven Fabric Production Line Width 3200mm For Shopping Bag





Quick Details



1> Model AL-1600S,AL-2400S;AL-3200S; AL-4200

2> Width 1600 to 4200mm

3> Fabric GSM : 9~250 g

4> Speed : 0~150m/min

5> CE ISO9001





Parts of spun bonded non woven fabric production line:



Recycle extruder ----> Main extruder ----> Filter ----> Metering pump ----> Monomer suction device ---> Spinning box ----> Quenching air chamber ----> Stretching device ----> Web former ----> Calender ---->Winder ----> Slitter



Spun-laid process and technical flow chart:



Additive(Recycling offcut fabric) ----> Raw materia l----> Melting ----> Filtering ----> Measuring ----> Spinning ----> Cooling ----> Stretching ----> Web forming ----> Calendering ----> Winding ----> Cutting----> Final product

Fabric GSM 9~250 S PP Non Woven Fabric Production Line Width 3200mm For Shopping Bag



 General Information For Non Woven Fabric Production Line



Model No. AL-1600S AL-2400S AL-3200S AL-4200S
Working Width 1600mm 2400mm 3200mm 4200mm
Fabric GSM 9~250 9~250 9~250 9~250
Power Input 200KVA 250KVA 300KVA 450KVA
Consumption 130KW 180KW 200KW 260KW
Annual Output 1500T 2400T 3000T 5000T
Embossing Pattern Diamond, Oval, Cross,Line





 Final Non Woven Fabric

Fabric GSM 9~250 S PP Non Woven Fabric Production Line Width 3200mm For Shopping Bag





 Fabric Usage



The equipment products non woven fabric with polypropylene(PP), adopts the technology of air drawing in to the web forming by negative pressure to make the PP spun bonded non woven fabric, the product is feature by uniform cover, great intensity, good breathable feature and good feeling, It is widely used for medical, household, hotel accessories, beauty care disposable product, Agricultural cover, clothes package and architecture.

Fabric GSM 9~250 S PP Non Woven Fabric Production Line Width 3200mm For Shopping Bag
