Product Details:
Payment & Shipping Terms:
|
| High Light: | non woven making machine,PP Non Woven Fabric Making Machine |
||
|---|---|---|---|
High Speed SSS PP Non Woven Fabric production Line / Equipment for Mask , Operation Suit
Quick details
1> Model : AL-1600SSS , AL-2400SSS , AL-3200SSS
2> Width : 1600 to 3200mm
3> Fabric :GSM :15~250 g
4> Speed : 0~300m/min
6> Fineness : 1.5~2.5dtex
5> CE ; ISO9001

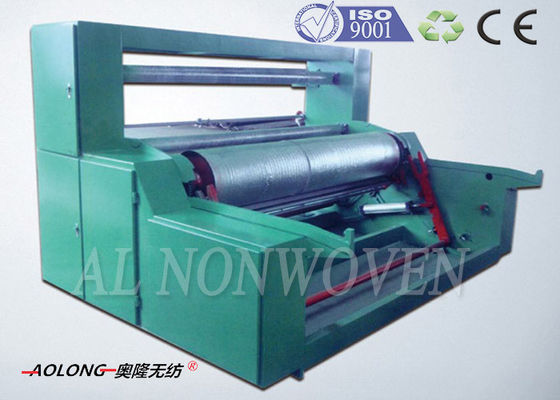

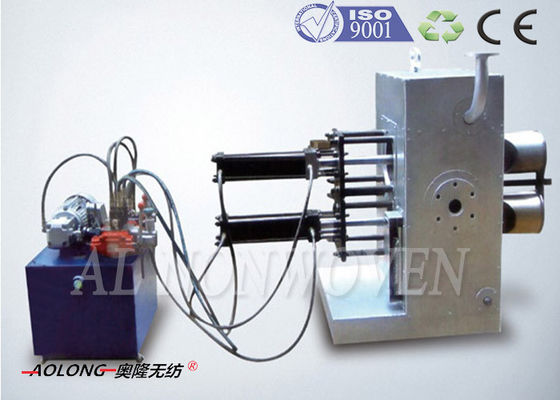

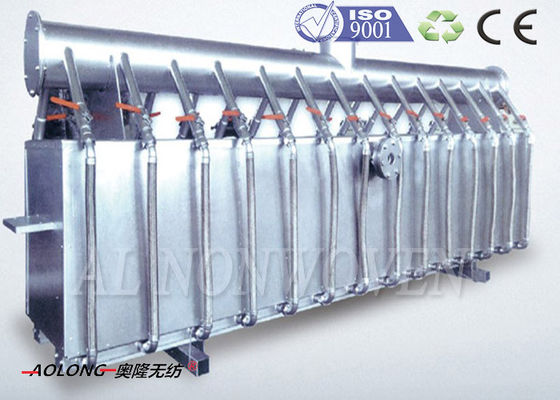

Parts Of Non Woven Fabric production Line :
Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box---->Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter
Spun-Laid Process And Technical Flow Chart:
Additive(Recycling offcut fabric)---->Raw material---->Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->Web forming---->Calendering---->Winding----> Cutting---->Final product
General Information For PP Non Woven Fabric production Line
| Model No. | AL-1600SSS | AL-2400SSS | AL-3200SSS |
| Working Width | 1600mm | 2400mm | 3200mm |
| Fabric GSM | 15~250 | 15~250 | 15~250 |
| Power Input | 800KVA | 950KVA | 1600KVA |
| Consumption | 600~800KW | 600~800KW | 600~800KW |
| Annual Output | 4700T | 6900T | 9200T |
| Embossing Pattern | Diamond, Oval | ||
| Speed | 10~300m/min | ||
| Fineness | 1.5~2.5dtex | ||
Final non woven fabric
Fabric Usage
SSS spun bonded non woven fabric is composed of continuous filament, have good tensile strength and elongation, mainly for health and medical non woven products.
