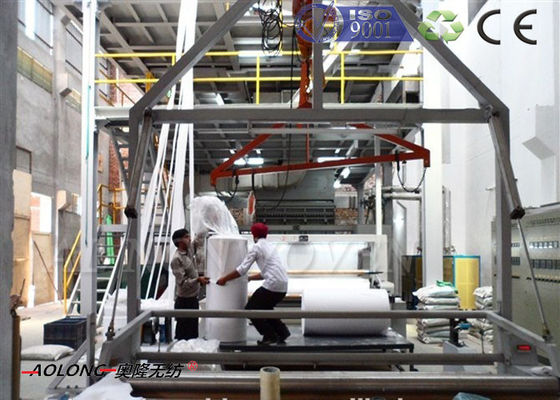

Full automatic PP Non Woven Fabric Making Machine 200KW with CE / ISO9001

Fabric GSM 9~250 Single beam PP Non Woven Fabric Making Machine For Shopping Bag 1600-4200mm

1. Quick Details

1> Model AL-1600S,AL-2400S;AL-3200S; AL-4200S

2> Width 1600 to 4200mm

3> Fabric GSM : 9~250 g

4> Speed : 0~150m/min

5> CE ISO9001

2. Parts of spun bonded non woven fabric production line:

Recycle extruder ----> Main extruder ----> Filter ----> Metering pump ----> Monomer suction device ---> Spinning box ----> Quenching air chamber ----> Stretching device ----> Web former ----> Calender ---->Winder ----> Slitter

3. Spun-laid process and technical flow chart:

Additive(Recycling offcut fabric) ----> Raw materia l----> Melting ----> Filtering ----> Measuring ----> Spinning ----> Cooling ----> Stretching ----> Web forming ----> Calendering ----> Winding ----> Cutting----> Final product

4. General Information For Non Woven Fabric Making Machine

5. Final Non Woven Fabric

6. Fabric Usage

The equipment products non woven fabric with polypropylene(PP), adopts the technology of air drawing in to the web forming by negative pressure to make the PP spun bonded non woven fabric, the product is feature by uniform cover, great intensity, good breathable feature and good feeling, It is widely used for medical, household, hotel accessories, beauty care disposable product, Agricultural cover, clothes package and architecture.
