Medical Non Woven Fabric Manufacturing Machine With Fineness 1.5~2.5dtex

China Medical Non Woven Fabric Manufacturing Machine With Fineness 1.5~2.5dtex supplier

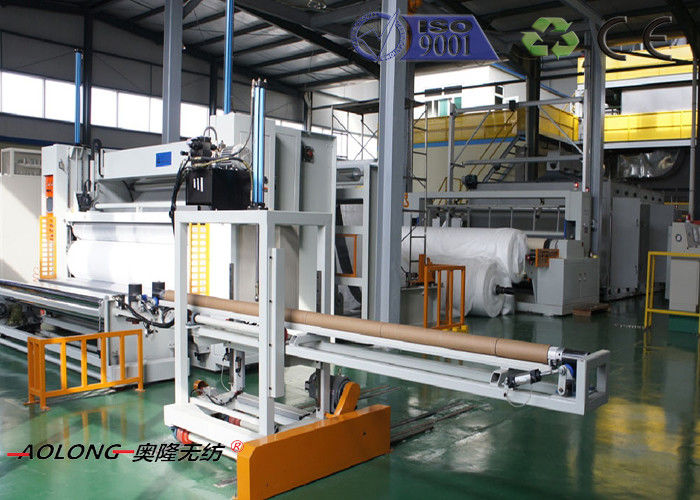

Large Image :  Medical Non Woven Fabric Manufacturing Machine With Fineness 1.5~2.5dtex

Product Details:

Place of Origin: China
Brand Name: AL
Certification: CE,ISO9001
Model Number: AL-1600SSS,AL-2400SSS,AL-3200SSS

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiations
Packaging Details: Wooden case; carton
Delivery Time: 150~180 days
Payment Terms: T/T;L/C
Supply Ability: 20sets/year
Detailed Product Description
High Light:

Non Woven Fabric Making Machine

,

Non Woven Fabric Production Line



SSS Spunbond PP Non Woven Fabric Making Machine / Equipment for Mask , Operation Suit





Quick details





1> Model : AL-1600SSS , AL-2400SSS , AL-3200SSS

2> Width : 1600 to 3200mm

3> Fabric :GSM :15~250 g

4> Speed : 0~300m/min

6> Fineness : 1.5~2.5dtex

5> CE ; ISO9001





Parts Of PP Non Woven Fabric Equipment :





Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box---->Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter

Spun-Laid Process And Technical Flow Chart:

Additive(Recycling offcut fabric)---->Raw material---->Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->Web forming---->Calendering---->Winding----> Cutting---->Final product







General Information For PP Non Woven Fabric Equipment





Model No. AL-1600SSS AL-2400SSS AL-3200SSS
Working Width 1600mm 2400mm 3200mm
Fabric GSM 15~250 15~250 15~250
Power Input 800KVA 950KVA 1600KVA
Consumption 600~800KW 600~800KW 600~800KW
Annual Output 4700T 6900T 9200T
Embossing Pattern Diamond, Oval
Speed 10~300m/min
Fineness 1.5~2.5dtex







Final non woven fabric



Medical Non Woven Fabric Manufacturing Machine With Fineness 1.5~2.5dtex

Fabric Usage



SSS spun bonded non woven fabric is composed of continuous filament, have good tensile strength and elongation, mainly for health and medical non woven products.

Medical Non Woven Fabric Manufacturing Machine With Fineness 1.5~2.5dtex
