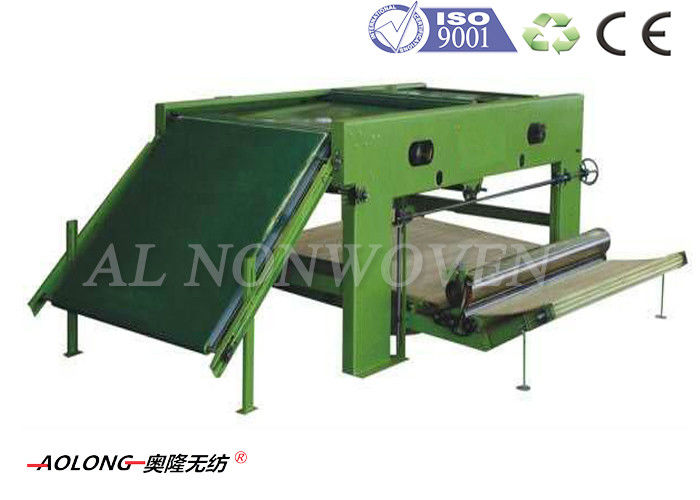

Non Woven Fiber Cross Lapper Machine Spreading 4000mm 380V 50Hz

China Non Woven Fiber Cross Lapper Machine Spreading 4000mm 380V 50Hz supplier

Large Image :  Non Woven Fiber Cross Lapper Machine Spreading 4000mm 380V 50Hz

Product Details:

Place of Origin: China
Brand Name: AL
Certification: CE,ISO9001
Model Number: ALPW-2700

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiations
Packaging Details: Wooden case; carton
Delivery Time: 30days
Payment Terms: T/T;L/C
Supply Ability: 230sets/year
Detailed Product Description
High Light:

lapper machine

,

non woven Lapper Machine



Non Woven Fiber Cross Lapper Machine Spreading 4000mm 380V 50Hz





Quick Details





1> 100% new

2> Width : 2700mm

3> Automatic

4> Voltage : 380V 440V 415V

5> CE; ISO9001







Function





After carding, filter net is sent to double belts cross lapper through the non-skid , it will be layered on the downside curtain, then sent to next equipment by adjustable moving curtain . The cross lapper can be used in wasted felt making , chemical bonded wadding making , synthetic PU leather substrate making etc .









Technical Data



- Input width:2700 mm

- Spreading width:4000 mm;

- Mechanical speed: Design speed: 120 m/min

Working speed: ≤100m/min

- Driving motor:

Front apron: servo motor(46N.m,2000r.p.m),1 SET;

Rear apron: servo motor(46N.m,2000r.p.m),1 SET

Bottom apron: servo motor(46N.m,2000r.p.m),1 SET;

Front apron to-and-fro: servo motor(46N.m,2000r.p.m)+ speed reducer ,1 SET;

Rear apron to-and-fro: servo motor(10N.m,3000r.p.m)+ speed reducer ,1 SET;

- The front and rear apron has the electrical edge position centering system

- Spreader’s roller is made of carbonous fiber.
