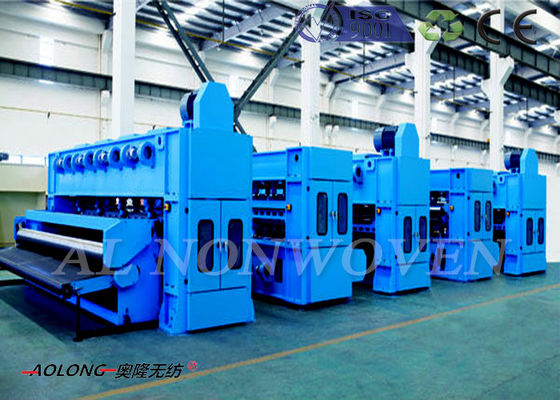

PET Fiber Non Woven Needle Punching Machine 3800mm For Waddings
Quick Details
1> width :2800mm , 3800mm,4800mm
2> Punching Frequency : 300~1000g/m^2
3> Needle density : 4000~6000m
4> Needle stroke: 25~60mm
5> CE; ISO9001
Function
It used for production of needle punching nonwoven fabrics like garments interlinging , felts, carpet, geo-textiles , Arts And Crafts Toys Nonwoven etc, there are pre-needle punching, upper and lower main needle punching different types.
| Model | Al-ZC 2800; AL-ZC3800 ;ALZC-4800 |
| width | 2800mm , 3800mm,4800mm |
| Punching Frequency | 300~1000g/m^2 |
| Needle density | 25~60mm |
| Needle stroke | 25~60mm |
| Working speed | 1~15m/min |
| Needle type | double shaft, single board, up/ down stroke |
Structure
a) Three dimensional speed module optimizing structure design.
b) Crank case complete with a vertical balance system, and adjust dynamic balance precisely.
c) Central oil lubrication circulation and cooling system optional with compressor compelling cooling or air cooling and complete with pressure alarm system.
d) Magnesium alloy/ PU combined needle board locked firmly by air tube; multi ranom computer needling methods for needle board.
e) Auto top dead center controlled stop.
f) Equipped with a complete electronic safety system to meet all international standards.
