non-gule cotton production line hard thermal bonding machine

China non-gule cotton production line hard thermal bonding machine supplier
non-gule cotton production line hard thermal bonding machine supplier non-gule cotton production line hard thermal bonding machine supplier non-gule cotton production line hard thermal bonding machine supplier non-gule cotton production line hard thermal bonding machine supplier

Large Image :  non-gule cotton production line hard thermal bonding machine

Product Details:

Place of Origin: CHINA
Brand Name: A.L nonwoven
Certification: CE/ISO9001
Model Number: AL-oven

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 320000 set
Packaging Details: wood packing
Delivery Time: 70 work days
Supply Ability: 10 set a year
Detailed Product Description
Warranty: 1 Year Voltage: 380-440V
Automatic Grade: Semi-Automatic After-sales Service Provided: Engineers Available To Service Machinery Overseas
Condition: New Weight: 70000-130000kg
Power(w): 100-350kw Dimension(l*w*h): Custom Made
Color: Reqquirement Width: 2100-4500mm
Raw Material: PET Name: Carding Machine,Nonwoven Thermal Bonded Padding Mattress Production Line,Non-Glue Cotton Production Line Hard Thermal Bonding Machine
Capacity: Customizable Product Name: Nonwoven Carding Machine,Nowoven Drying Oven,Thermal Bonding Oven Nonwoven Machine Heating Setting Machine,silicon Thermal Bonding Polyester Bonded PET Wadding Machinery
Application: Manufacture,Industrial Nonwoven Fabric Manufacturing Keywords: Polyester Wadding Machine,nonwoven Oven

non-gule cotton production line hard thermal bonding machine

thermal bonding polyester wadding machinery

PET wadding machinery



non-gule cotton production line hard thermal bonding machine



Product Description



Quilt/wadding production line is widely used on auto quilt making/filling and non-glue wadding production, Cotton/wool/PP/hollow fibers are suitable on this machine line.



non-gule cotton production line hard thermal bonding machine

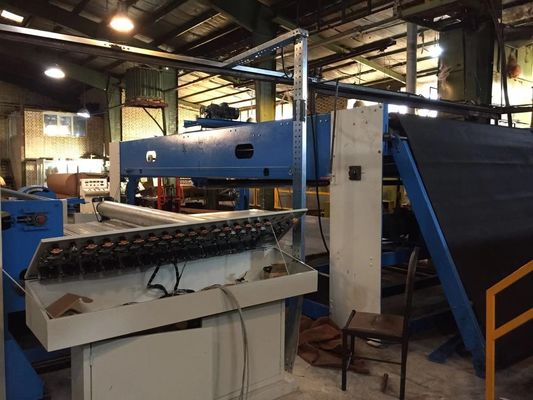

Main machines

Needle Punching Machine



non-gule cotton production line hard thermal bonding machine

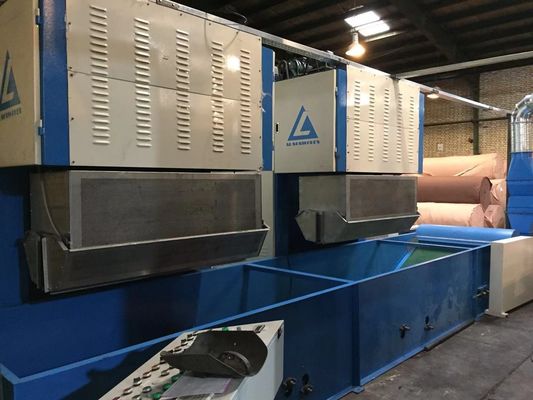

Function
This machine is used to thermal bond web or semi-finished nonwovens contained low melt fiber by hot air penetration to achieve certain thickness and hardness.
Main Specification
Working width: 2000-4800mm
Heating Chamber Length: 6m, 8m, 10m,12m Single belt or double belt
Heat setting temperature: ≤200℃
Working speed: ≤20m/min
Heating circulation method: top-blowing and bottom-suction, bottom-blowing and top-suction penetration in turn.
Heating source: Electricity heating, gas burner heating, diesel oil burner heating
Installed capacity: 20.2-62.4KW

(Electricity heating power according to oven width and length)
Characteristics
1.Top-blowing and bottom-suction, bottom-blowing and top-suction alternately to evenly thermal bond through the wadding and ensure uniform surface.

2.Compact design for heating chamber to achieve the best heat energy utilization.
3.Unique design for thermal insulation layer so as to achieve the best insulating result, reducing heat loss
4.The distance between upper air channel and conveyor belt can be automatically adjusted according to the thickness of the web.

5. Constant temperature control, automatic control, saving energy







Finished product





non-gule cotton production line hard thermal bonding machine



non-gule cotton production line hard thermal bonding machine





Packaging and shipping

Packaging Detail:According to customer requirements and the size of needle-punched geotextile,wide geotextile production line,geotextile machine.
Delivery Detail:within 3 month after order wide geotextile production line.





FAQ

1.Are you factory or trading company?
we are the manufacture of the textile waste recling machine and needle puching machine,much more professional with more than 15 years experience
2.How can i get the best machine?
just let me know your requerement. i will adivce the best suitable line for you
3.This is the first time i use this kind machine,is it easy to operate?
the operation manual will be send to u with the machine. its in details. if u still confused, we can provide training or specialized teaching video to you
4.If the machine has problem in my plant,how could i do?
we offer remote assistance in 24 hours,ensure that solve your problem in time or change damage parts for free during warranty
For detailed quotation,please contact us freely,our term will always offer the best service for you!
