CE PP Spunbond Non Woven Fabric Manufacturing Machine For All Hygienic Material

CE PP Spunbond Non Woven Fabric Manufacturing Machine For All Hygienic Material

PP Spunbond nonwoven fabric making machine for all hygienic material ,medical treatment fabric used ,SMS AL--3200mm

AL -3200mm SMS  pp spunbond nonwoven fabric making machine for hygienic material,medical treatment manufactory

3200MM SMS WORKING PROSCESS

auto feeder(3) →main extruder(3)→filter(3) →metering pump(3) →spinning box(2) → stretching device (2)→Melt blow →web forming machine (1)→calender(1) →winding machine(1) →slitting machine electrical cabinet box(1)

main machine parts show

1:Web forming machine

Used to supply carrier for the drawn fiber webs, including a drive system for web forming belt, a suction channel device, a sealing device, an automatic correcting device, belt tensioning device, a frame and a prepresing roller, oil furnace and web support roll.

Speed:10-350m/min                         Air passing through : 10000m³/㎡.h                     negative pressure: 500Pa

2:Calender

By the roller pressure make embossing pass to next machine

 Roller type: engraved upper roll and plain lower       Calendar material : 42CrMo      Roller diameter : Φ560

Different type of machine size show

machine working list

auto feeder(2) →main extruder(2)→filter(2) →metering pump(2) →spinning box(2) → stretching device (2)→web forming machine (1)→calender(1) →winding machine(1) →slitting machine electrical cabinet box(1)

Melt blow main parts

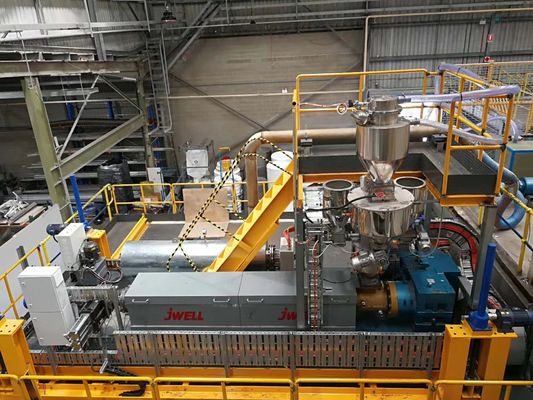

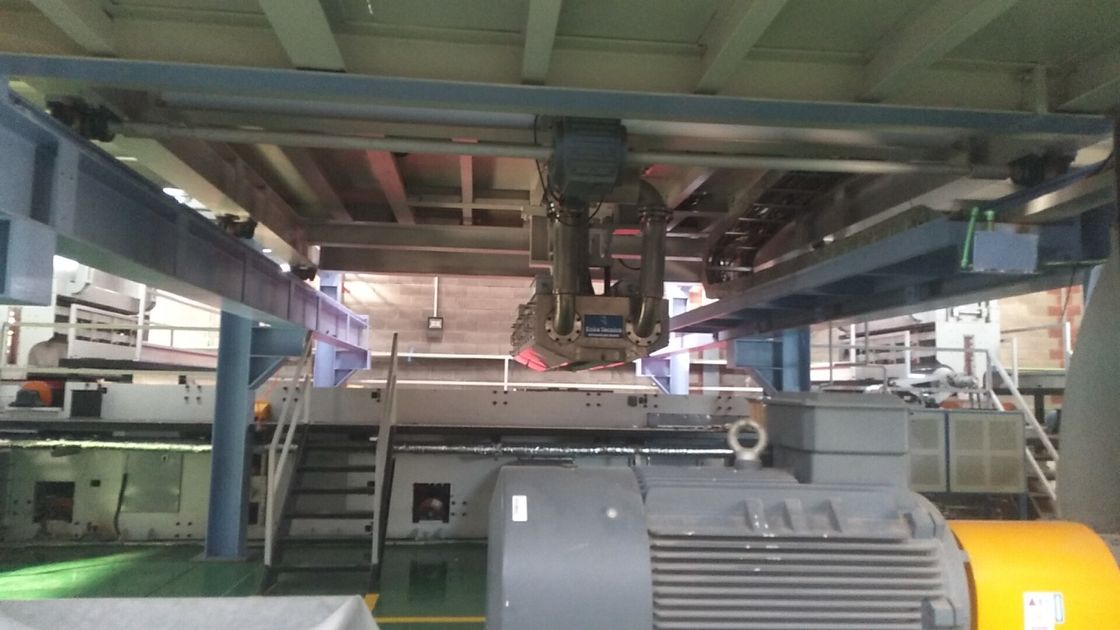

Machine Show

FAQ

Q1:what is the raw material ?

A1:Polypropylene granule, Master Batches , Additive

Q2:how much additive can put to machine ?

A2:for aolong nonwoven machine ,we can warranty 40%

Q3:if put additive ,how about the qulity ?

A3:if put additive the qulity will less than 100% Polypropylene qulity

Q4:How long is your warranty time:
