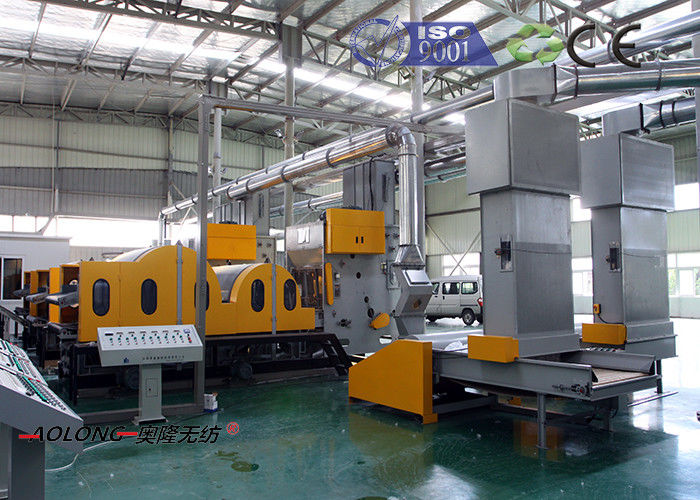

Double Cyinder / Double Doff Carding Machine 22kw Width 2000mm
Quick Details
1> 100% new
2> Width : 2000mm
3> Capacity : 250kg/ h
4> Power :22kw
5> CE; ISO9001
Function
It is designed with double cylinder and single or double doff, fiber is sent from front cylinder to middle doff and main cylinder through rollers ,each cylinder have 4 to 5 sets of carding rollers, after many times of carding then feed to the curtain on the cross lapper.
Technical Data
| Model | AL-SLC2D2-2000 |
| Width | 2000mm |
| Capacity | 250kg/ h |
| Fibre | 1.5-20D*38-65mm |
| Doff size | 490mm |
| Cylinder size | 1230mm |
| Working speed | 20~45m/min |
| Power | 22kw |
