Polypropylene Spun Bonded Non Woven Fabric Making Machine With Double Beams

China Polypropylene Spun Bonded Non Woven Fabric Making Machine With Double Beams supplier

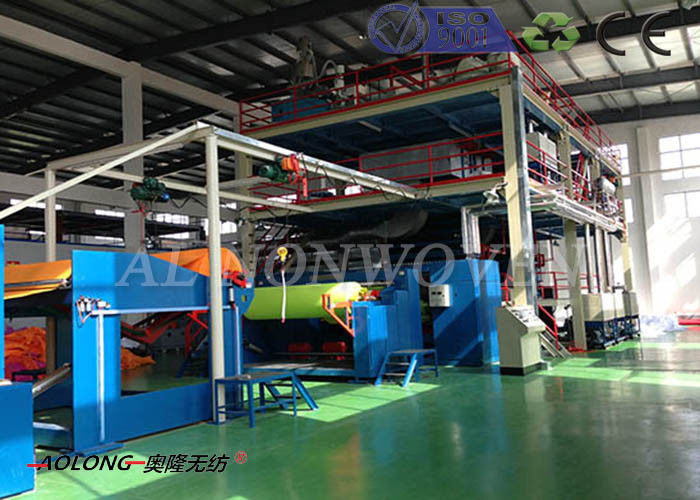

Large Image :  Polypropylene Spun Bonded Non Woven Fabric Making Machine With Double Beams

Product Details:

Place of Origin: China
Brand Name: AL
Certification: CE,ISO9001
Model Number: AL-1600SS,AL-2400SS,AL-3200SS

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD540,000~2,000,000 FOBNINGBO
Packaging Details: Wooden case; carton
Delivery Time: 45~90 days
Payment Terms: T/T;L/C
Supply Ability: 40sets/year
Contact Now
Detailed Product Description

High Speed 250m/min Double beams Spun bonded PP Spunbond Machine width 3200mm for Operation Suit





1. Quick details:





1> Model AL-1600SS , AL-2400SS , AL-3200SS

2> Width 1600 to 3200mm

3> Fabric GSM :10~250 g

4> Speed : 0~250m/min

5> CE ; ISO9001







2. Parts of PP Spunbond Machine :





Recycle Extruder---->Main Extruder---->Filter---->Metering Pump---->Monomer Suction Device--->Spinning Box---->Quenching Air Chamber---->Stretching Device---->Web Former---->Calender---->Winder---->Slitter





3. Spun-Laid Process And Technical Flow Chart:





Additive(Recycling Off-cut Fabric)---->Raw Material---->Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->Web Forming---->Calendering---->Winding----> Cutting---->Final Product



Polypropylene Spun Bonded Non Woven Fabric Making Machine With Double Beams

4. General Information For PP Spunbond Machine :





Model No. AL-1600SS AL-2400SS AL-3200SS
Working Width 1600mm 2400mm 3200mm
Fabric GSM 15~250 15~250 10~250
Power Input 300KVA 350KVA 400KVA
Consumption 200KW 250KW 300KW
Annual Output 3000T 4800T 6000T
Embossing Pattern Diamond, Oval,Cross,Line
Fineness 1.5~2.5dtex



5. Final non woven fabric



Polypropylene Spun Bonded Non Woven Fabric Making Machine With Double Beams



6. Fabric Usage



Medical and Health : Operation suit , exposure, cap, mask , massage cloth, adhesive tape.



Agricultural : Cover for pant to anti- frost , insect-resistant sunshades , awning clothes , packing bags for crops etc .



Packing and Linning : Bags for shopping and gift packet, dust cover, sleeping bag for children etc.
